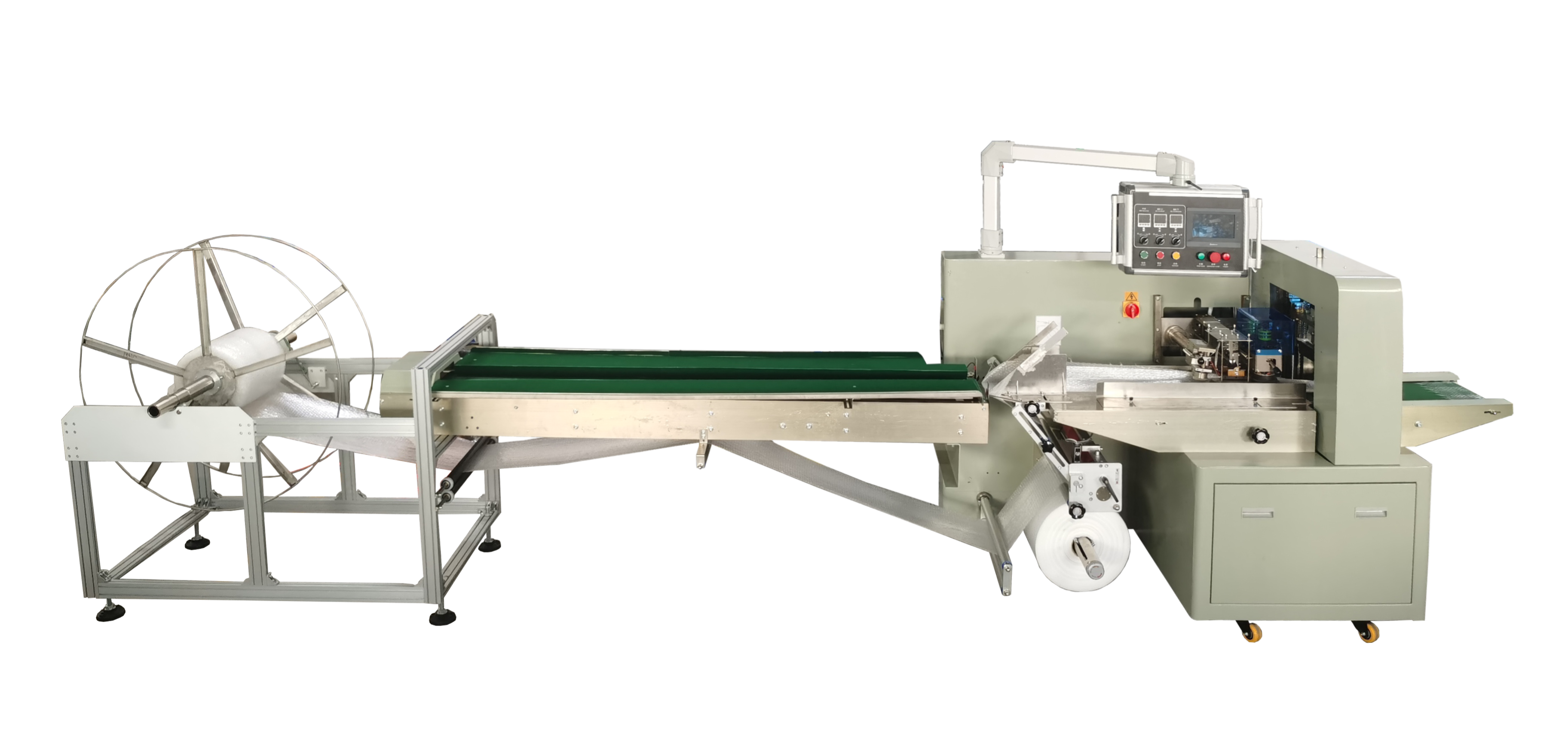

Up-Down Pillow Packing machine JY-350S 450S 600S 800S 900S 1000S

No.JY-350S 450S 600S 800S 900S 1000S
Applications
Suitable for the second packaging of biscuits,chocolate,bread and other products,medical supplies,daily necessities.Hardware accessories, cartons,vermicelli,vegetables and other irregular objects packaging.

Feature
  1. Three servo control,Bag length can be set and cut in one step,operator  needn't to adjust the unloading working,saving time and fim.
  2. Interface features easy and quick setting and operation.
  3. Self failure diagnosis,clear failure display. High sensitivity photoelectric eye color tracing,numerical input of cutting sealing position for extra accuracy.
  4. Temperature independent PID control,more suitable for package different  materials.
  5. Positioned stop function,without sticking knife or wasting film.
  6. Simple driving system,reliable working,convenient maintenance.
  7. All control is realized through software,easy for function adjusting and technical upgrade.
  • Up-Down Pillow Packing machine JY-350S 450S 600S 800S 900S 1000S

Description

Applications
Suitable for the second packaging of biscuits,chocolate,bread and other products,medical supplies,daily necessities.Hardware accessories, cartons,vermicelli,vegetables and other irregular objects packaging.

Feature
  1. Three servo control,Bag length can be set and cut in one step,operator  needn't to adjust the unloading working,saving time and fim.
  2. Interface features easy and quick setting and operation.
  3. Self failure diagnosis,clear failure display. High sensitivity photoelectric eye color tracing,numerical input of cutting sealing position for extra accuracy.
  4. Temperature independent PID control,more suitable for package different  materials.
  5. Positioned stop function,without sticking knife or wasting film.
  6. Simple driving system,reliable working,convenient maintenance.
  7. All control is realized through software,easy for function adjusting and technical upgrade.
Optional Accessories
1.Date    printer
2.Auxiliary   material   feeding   device
3.Material   cut   prevent   device
4.Hole   punching   device
5.Angle   folding   device
6.Labelling     machine
7.Thermal   transfer   code   printer
8.Air   charging   system
9.PE   film   structure
10.All   stainless   steel

Specifications

机 型(Type)

JY-350

JY-4505

JY-6005

JY-800S

JY-900S

JY-1000S

薄膜宽度(Film width)

Max.350mm

Max.450mm

Max.600mm

Max.800mm

Max.900mm

Max.1000mm

制袋长度(Bag length)

根据产品长

度(According to product tengt)

制袋宽度(Bag width)

30-160mm

50-210mm

80-280mm

145-380mm

160-430mm

190-480mm

标准(Standard)  高度(height)

定制(customized)

Max.110mm

Max.110mm

Max.160mm

Max.180mm

Max.180mm

Max.180mm

Max.160mm

Max.160mm

Max220mm

Max.280mm

Max.300mm

Max.300mm

卷膜直径(Fim roll iameter)

Max320mm

包装速度(Packaging rate)

30-40bag/min

电源规格(Power)

220V 50/60Hz 26KW

220V 50/60Hz 2.8KW

220V 50/60Hz 3.2KW

220V 50/60Hz 3.6KW

220V 50/60Hz4.5KW

220V 50/60Hz 45KW

机器尺寸(Machine size)

3770×710×1420mm

3870x920x1520mm

3970x980x1720mm

4270x1120x1800mm

4570x1190x1850mm

4970*1390*1850mm

机器质量(Machine size)

About 550kg

About 600kg

About 680kg

About 720kg

About 800kg

About 880kg

备  注 ( R e m a r k s )

长度和颜色可定制(Lengthand color can be customzed)

包装材质(Film material)

OPP、PE、PVC、OPP/CPP、PT/PE、KOP/CPP等

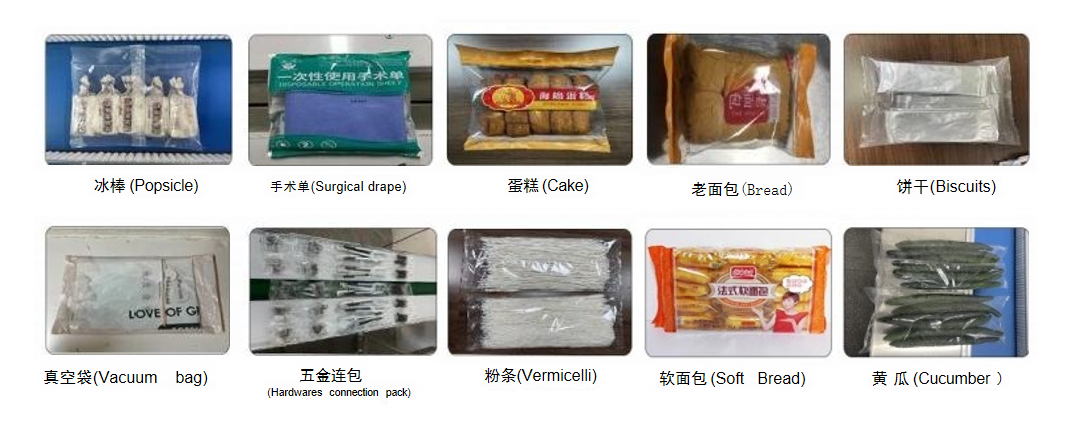

Packaging samples show
